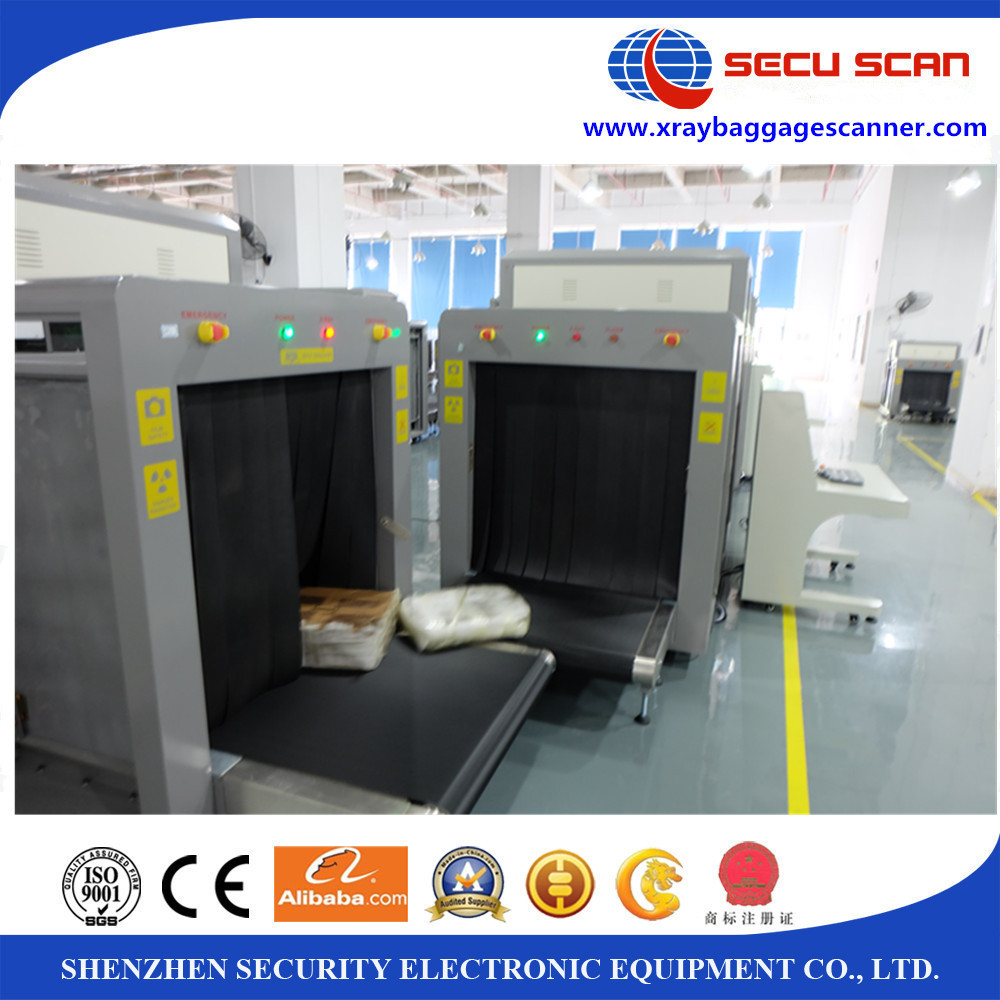

Factory Use X Ray Baggage Scanner With 500*300cm Tunnel For Quality Control

Product Categories

X Ray Baggage Scanner [696]
Baggage And Parcel Inspection [520]
Walk Through Metal Detector [317]
Under Vehicle Surveillance System [333]
Explosives Detector [132]
Non Linear Junction Detector [10]
Road Safety Equipment [49]
Bottle Liquid Scanner [64]
Metal Detector Gate [162]
Portable Metal Detectors [32]
Luggage X Ray Machines [172]
EOD Equipment [40]
X Ray Scanning Machine [164]
X Ray Security Scanner [190]
Walk Through Scanner [98]
Handheld Body Scanner [26]
Hand Held Metal Detector [43]

SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Factory Use X Ray Baggage Scanner With 500*300cm Tunnel For Quality Control

Name: Factory Use X Ray Baggage Scanner With 500300cm Tunnel For Quality Control
Brand: SECUSCAN
Price: 1 USD

Quality Factory Use X Ray Baggage Scanner With 500*300cm Tunnel For Quality Control for sale

Brand Name : SECUSCAN

Model Number : AT5030C

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 sets/month

Delivery Time : One week when there is stock, One month when no stock.

Packaging Details : Wooden Packing

Waranty : One year free spare parts, life technic support

Software Interface : Support Multi language

Training : Free training in the factory

Installation : very easy

Operatoin : User maual attached with machine

OEM/ODM : Accepted

Tunnel size : 500(W)*300(H)mm

Penetration : 30-32mm steel

Tube voltage : 140kv

Conveyor max load : 150kg

Contact Now

Factory Use X Ray Baggage Scanner With 500*300cm Tunnel For Quality Control

Specification

*Contents*	Index
Technical Data	Model Name: AT5030C
	Tunnel Size: W500*H300mm
	Conveyor Speed: 0.22m/s
	Conveyor Max Load: 150 kg
	Single Inspection Dosage: < =0.1µ GY
	Resolution: 0.087mm metal line
	Steel Penetration: typical 40mm steel
	Film Safety: For ISO 1600
	Maximum leakage radiation: <0.05µ GY/H
X-ray Generator	Orientation: Vertically Upward
	Tube Current: 0.4~1.2MA(adjustable)
	Anode Voltage: 140kv
	Angle: 80°
Operating Environment	Storage Temperature: -20ºC to 60ºC
	Operating Temperature: 0ºC to 45ºC
	Relative Humidity: 20 -90%non-condensing
	System Power: 220 VAC(±10%) 50±3HZ
	Power wastage: 1.0KW (Max)
	Noise: <55DB

Packing and Shipment:

Packing details	carton packing
	1 set/ctn
	Packing Size: (L)1850(W)830(H)1500mm
	Gross Weight:500kg
Payment terms	T/T, Western Union, Cash,L/C
Shipping methods	By air (5-7days, most expensive)
	By express (3-7days, more expensive)
	By sea (15-28days, cheapest)

Applications:

End user	Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals	AT6040; AT6550; AT10080; AT100100
Factories (to find needle in clothing, shoes, bags),	AT5030; AT6040; AT6550
Courthouses, Embassies, Buildings	AT5030; AT6040; AT6550
Military installations	AT5030;AT6040; AT6550; AT8065; AT100100
Prisons, Hotels, Schools, Convention centers	AT5030; AT6040; AT6550; AT10080
Security checkpoints,Special events location	AT5030; AT6040; AT6550; AT8065; AT10080

Company profile:

Rose,from Security Electronic Equipment Co.,Ltd(SEE) .

The biggest manufacturer of threats detecting device in South of China.

With professional R&D engineer team are specialized in:

Under vehicle inspection system(new)-mirror & camera
Explosive and Drug trace detection(new)
Dangerous liquid scanner(new)
X-ray screening system for baggage
Walk through metal detectors
Hand held metal detector

Quotation will send you by your inquiry ASAP
